Compact Pendant Light Wiring Kit for Decorative Ceiling Roses

0 reviews • Write a review

from

£6.42

Ex Tax: £5.35

Stock: 750
Model: JB-ADE-WAGO
Weight: 0.04kg
Dimensions: 20.50mm x 17.00mm x 14.50mm
SKU: JB-ADE-WAGO
UPC: 5060422620700
EAN: 5060422620700
MPN: JB-ADE-WAGO
Location: South Wales

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tags: wiring , junction block

We have put together this cost effective connector kit utalising Wago tool free wiring terminals.

Everything you need to replace the modern ceiling junction rose in one convenient package.
Combined patented Wago PushWire and Cage Clamp technology makes these terminals ideal for lighting applications.
Suitable for 1mm to 2.5mm solid conductors and 0.5mm2 to 2.5mm solid, stranded and flexible conductors.

Applications

Wall lighting connections
Ceiling rose for pendant lighting
Extending and looping conductors

Compliant with BS7671 17th Edition
Wago connectors meet the most stringent UK and international standards including the electrical requirements of BS7671 17th Edition.
Installers can be totally confident that using Wago connectors enables them to follow 'best practice' procedures and fully comply with the most up to date safety criteria.

WAGO

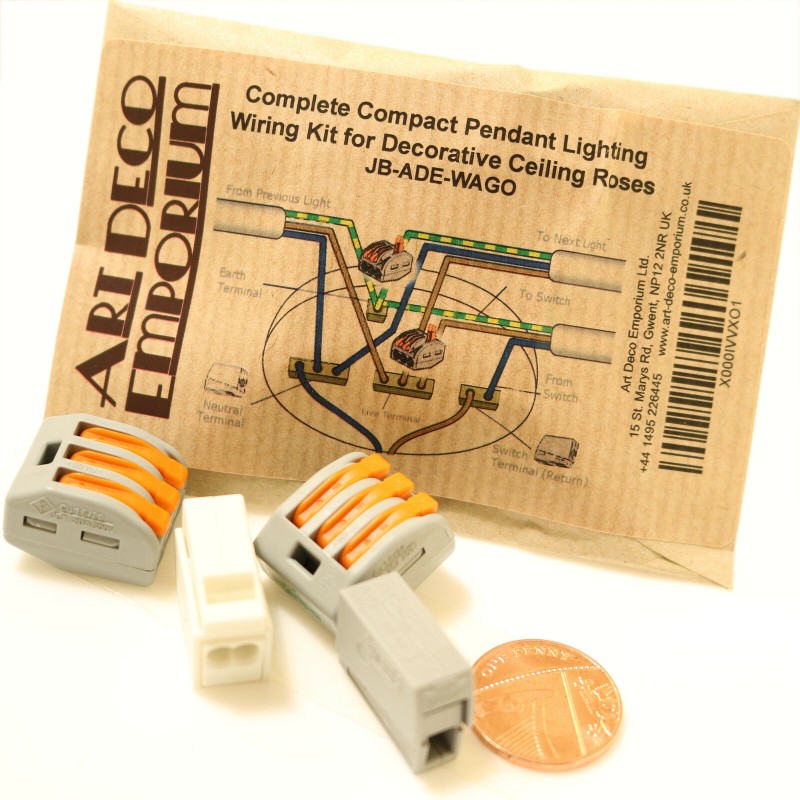

Each kit comprises of the following:

1 x 3 (222-413) terminal lever connector - Live Terminal
1 x 3 (222-413) terminal lever connector - Earth
1 x 2 (224-101) terminal push fit connector - Live Switch Return
1 x 3 (224-112) terminal push fit connector - Neutral Return
